Wall-mount / floor LFP battery comparison
Side-label comparison table: labels on the left, one column per model. Horizontal scroll enabled for 6 models.
Comparison (6 models)

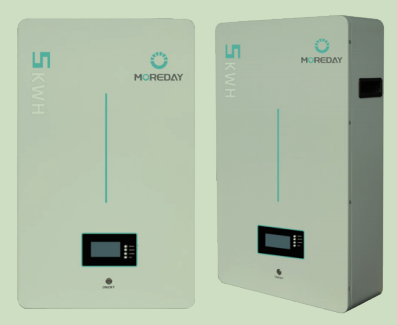

MDS-512100 (A)
MDS-512100 (B)
MDS-512100 (C)

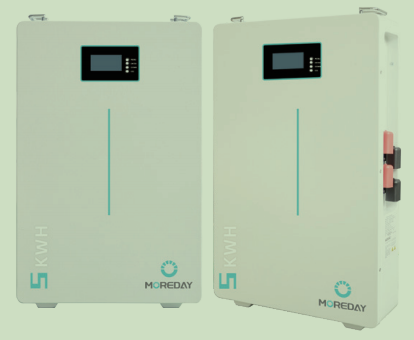

MDS-256200
MDS-512206 (A)

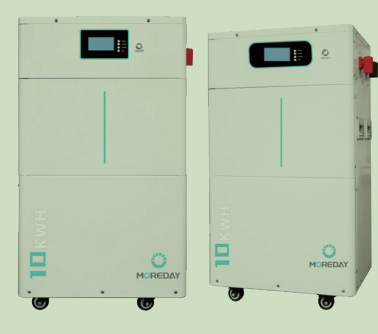

MDS-512206 (B)
| Parameter | MDS-512100 (A) | MDS-512100 (B) | MDS-512100 (C) | MDS-256200 | MDS-512206 (A) | MDS-512206 (B) |
|---|---|---|---|---|---|---|
| Nominal Voltage | 51.2V | 51.2V | 51.2V | 25.6V | 51.2V | 51.2V |
| Nominal Capacity | 100Ah | 100Ah | 100Ah | 200Ah | 206Ah | 206Ah |
| Energy | 5.12kWh | 5.12kWh | 5.12kWh | 5.12kWh | 10.54kWh | 10.54kWh |
| Cycle Life | 6000 Times | 6000 Times | 6000 Times | 6000 Times | 6000 Times | 6000 Times |
| Dimension (mm) | 410*145*660 | 377*152*626 | 400*150*600 | 410*145*660 | 800*139*660 | 450*360*580 |
| Communication | RS485/232/CAN | RS485/232/CAN | RS485/232/CAN | RS485/232/CAN | RS485/232/CAN | RS485/232/CAN |
