Residential
Residential ESS
Low-voltage stack & wall-mount packs, high-voltage systems, and all-in-one inverter + battery solutions.
Low-voltage (51.2V)
Stackable and wall-mounted batteries around 10kWh & 16kWh class.
High-voltage (358.4V – 716.8V)
Systems for higher power and HV DC bus requirements.
ESS all-in-one
Integrated inverter and battery for faster residential deployment.
Products
DetailsLow-voltage (51.2V)
Wall-mounted battery
MDS-512200
Voltage 25.6V-51.2V Capacity 206Ah Energy 5.12KWH-10.54KWH Cycle life 6000 cycles Dimensions (mm) 723 × 655 × 255 Communication RS485 / RS232 / CAN

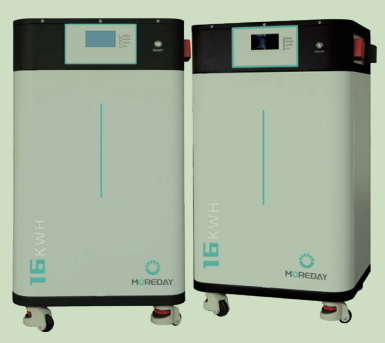

DetailsLow-voltage (51.2V)
Stackable battery
MDS-51314
Voltage 51.2V Capacity 314Ah Energy 16.07kWh Cycle life 8000 cycles Dimensions (mm) 730 × 610 × 257 Communication RS485 / RS232 / CAN

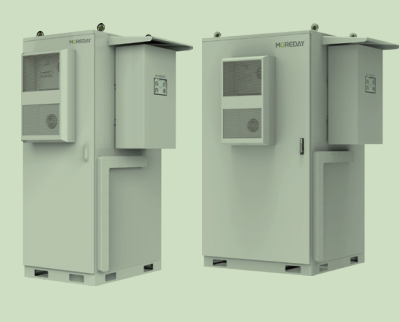

DetailsHigh-voltage (358.4V – 716.8V)
High voltage system
HVS Series
Voltage range 358.4V – 716.8V Energy range 14.33kWh – 100.35kWh (scalable) Cycle life 8000 cycles Communication RS485 / RS232 / CAN

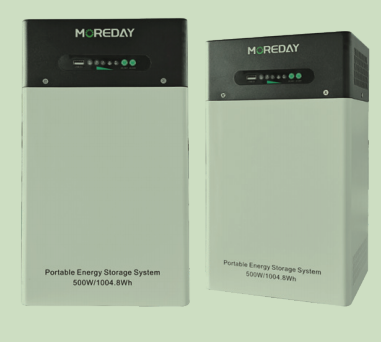

DetailsESS all-in-one
ESS all-in-one
All-in-one family
Voltage 51.2V Capacity 100Ah / 314Ah Energy 5.12kWh – 16.07kWh Representative models M1200 (1), MB-1111, etc. Communication RS485 / RS232 / CAN
