HVS high-voltage series

Rack-mount 100Ah / 280Ah platforms plus cabinet-class BESS from 358.4V–716.8V DC up to 200+kWh-class energy.

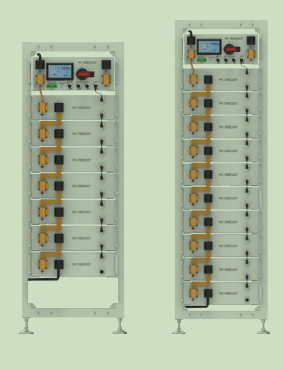

HVS 100Ah rack-mount

Section A · Standard rack-mount (100Ah)

100Ah rack family: parameter labels on the left, one column per model for quick side-by-side review.

ModelMDS-3584100MDS-5120100
Voltage358.4V512V
Capacity100Ah100Ah
Energy5.12kWh × 75.12kWh × 10
Cycle life6000 cycles6000 cycles
Dimensions440×442×133 mm × 7440×442×133 mm × 10
Comm.RS485/RS232/CANRS485/RS232/CAN
HVS 280Ah rack-mount

Section B · High-capacity rack-mount (280Ah)

280Ah racks up to 716.8V with 14.336kWh modules in 7 / 11 / 14 stacks and 8000-cycle life.

ModelMDS-3584280 (A)MDS-5632280MDS-7168280 (A)
Voltage358.4V563.2V716.8V
Capacity280Ah280Ah280Ah
Energy14.336kWh × 714.336kWh × 1114.336kWh × 14
Cycle life8000 cycles8000 cycles8000 cycles
Module size483×792×245 mm483×792×245 mm483×792×245 mm
Comm.RS485/RS232/CANRS485/RS232/CANRS485/RS232/CAN

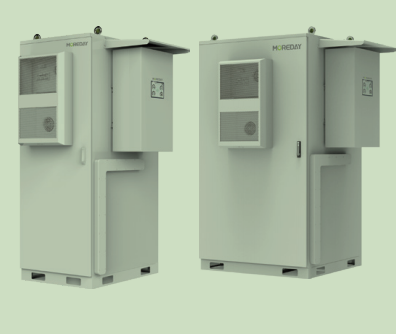

HVS cabinet BESS

Section C · Cabinet BESS (bulk energy)

Cabinet BESS: ~100kWh vs ~200kWh columns with industrial footprints side by side.

ModelMDS-3584280 (B)MDS-7168280 (B)
Nominal voltage358.4V716.8V
Total energy100.352kWh200.704kWh
Cycle life8000 cycles8000 cycles
Footprint1250×1245×2175 mm1626×1245×2175 mm
Comm.RS485/RS232/CANRS485/RS232/CAN
