Military-Grade BESS Technology Built for the Grid
Every component — cell chemistry, BMS architecture, PCS topology, thermal management — is engineered for one purpose: delivering sub-200ms frequency regulation at grid scale, reliably, for 20+ years.

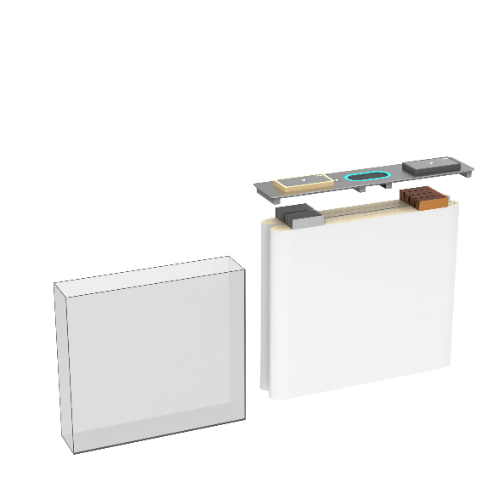

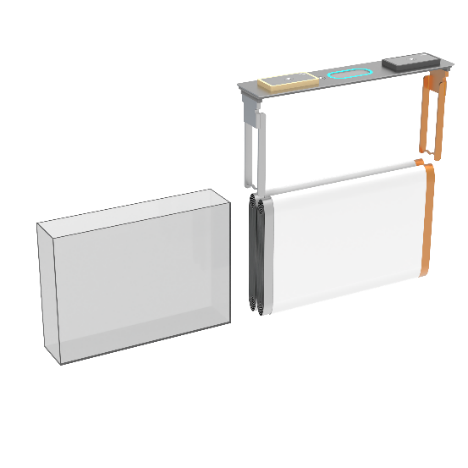

Prismatic LFP · 314Ah
Our systems are built on 314Ah-class prismatic lithium iron phosphate cells — the gold standard for grid-scale energy storage. LFP chemistry delivers zero thermal runaway risk, 8,000+ cycle life at 1C, and exceptional calendar life exceeding 15 years.
3-Layer Intelligent BMS
Our proprietary battery management system operates across three tiers: cell-level voltage & temperature monitoring, module-level balancing and protection, and system-level dispatch optimization. Real-time SOC/SOH estimation enables predictive maintenance and degradation modeling.
Bidirectional PCS · 500kW–2MW
Our PCS units feature NPC/T-type three-level topology for high efficiency across the full power range. The control platform runs a sub-200ms AGC response loop, enabling participation in FCR, FFR, and aFRR markets simultaneously without hardware reconfiguration.

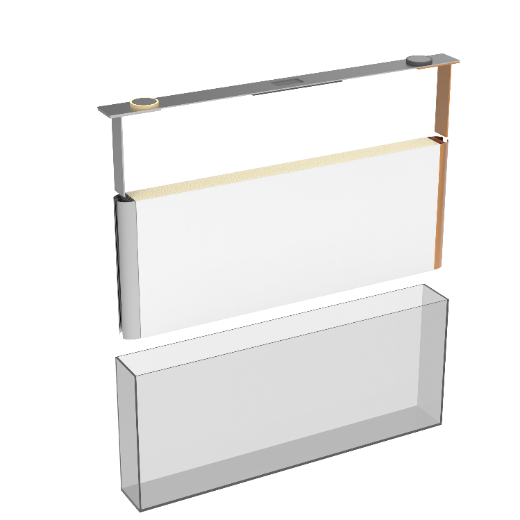

Precision Liquid Cooling
Liquid-cooled battery modules maintain cell temperature within ±2°C across all operating conditions. Direct-contact cold plates with glycol-water circulation ensure uniform heat distribution, maximizing cycle efficiency and extending calendar life significantly beyond air-cooled alternatives.
FCR / FFR / aFRR Ready
Our EMS control platform supports all major ancillary service market types — Primary Frequency Response (FCR), Fast Frequency Response (FFR), and Secondary Frequency Regulation (aFRR). The system monitors grid frequency at 10ms resolution and dispatches power within 200ms of a deviation event.
4 Proven System Topologies
From pure grid-scale frequency regulation to hybrid solar-storage-EV charging, our modular BESS platform adapts to every power scenario with a single, unified control architecture.
System single-line diagram — click tabs above to switch topologies
Storage System — Grid-Connected BESS
The purest form of grid-scale energy storage. BESS + PCS connect directly to the AC grid via an AC cabinet and meter, with full EMS/SCADA/cloud monitoring. Ideal for frequency regulation, peak shaving, and grid stabilization.
Certifications & Standards

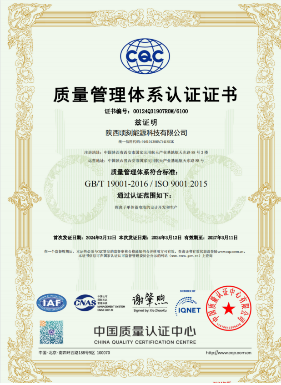

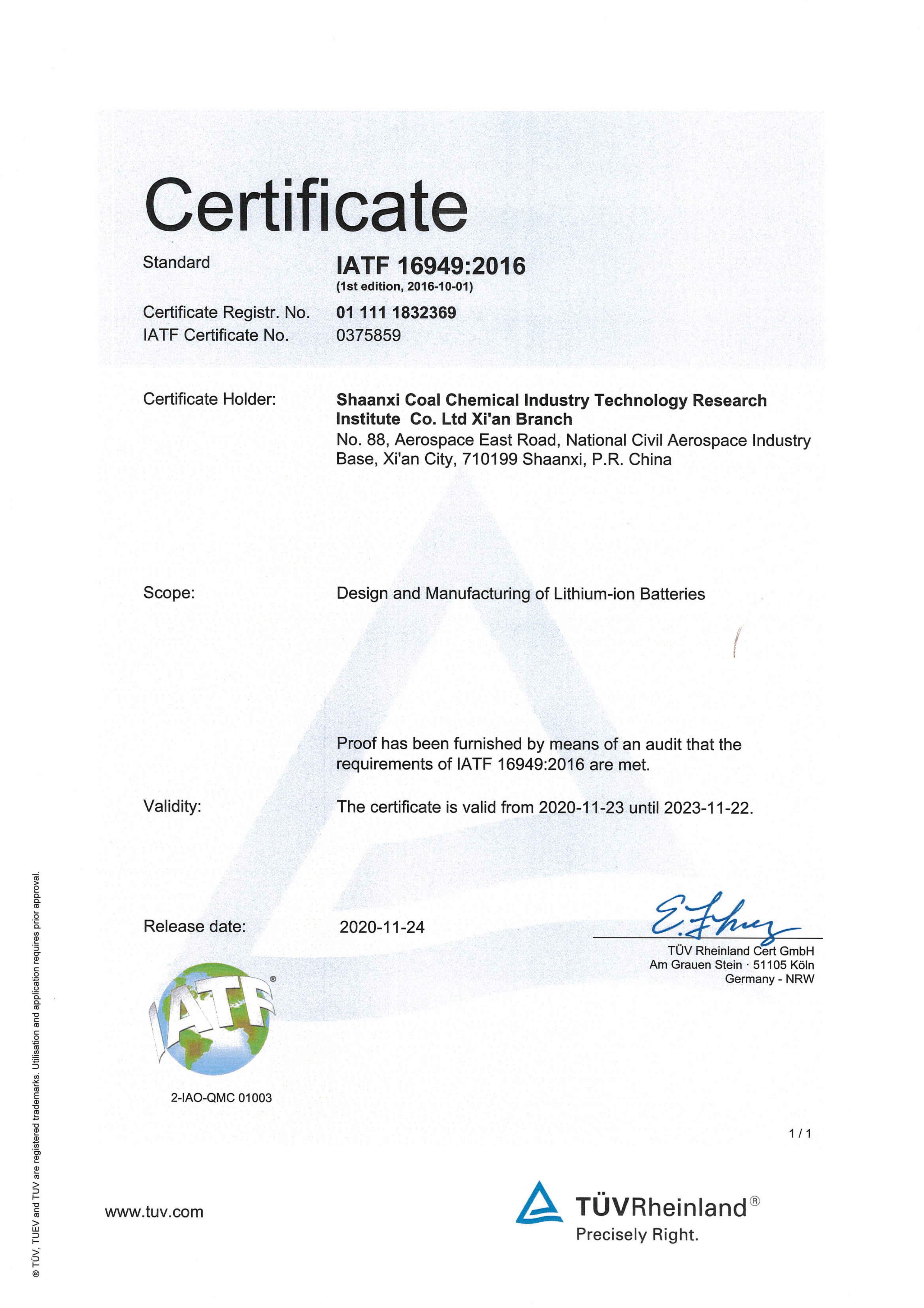

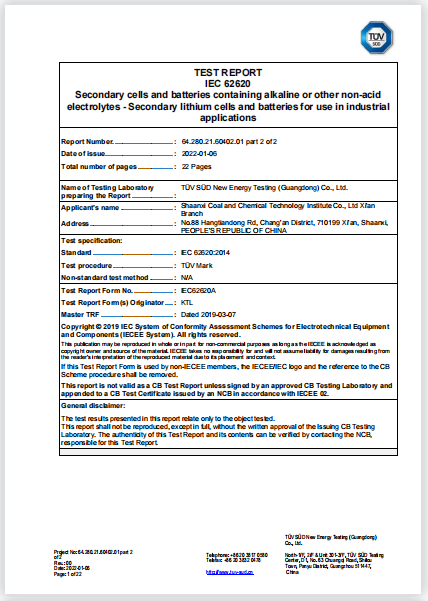

Every system ships with full certification documentation. Our quality management system is ISO 9001 certified, and our manufacturing facilities undergo regular third-party audits.
Download Technical Datasheet
Get full specifications, single-line diagrams, and integration guides for our BESS product line.
