Stackable / floor-standing battery comparison

Comparison for 7 variants in the same family: labels on the left, one column per model. Horizontal scroll enabled.

Comparison (7 models)

MDS-512314(A)

MDS-512314(A)

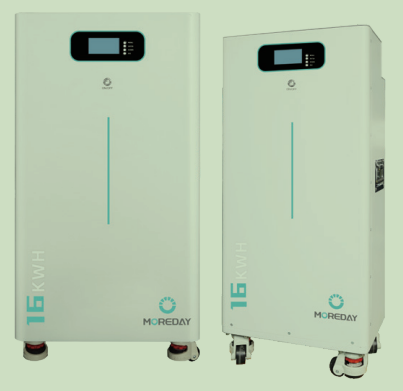

MDS-512314(B)

MDS-512314(B)

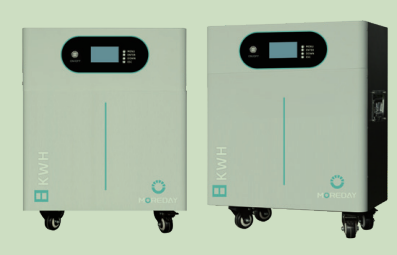

MDS-256314

MDS-256314

MDS-512200(A)

MDS-512200(A)

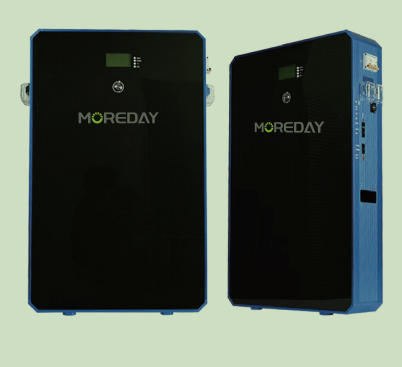

MDS-512314(D)

MDS-512314(D)

MDS-512200(B)

MDS-512200(B)

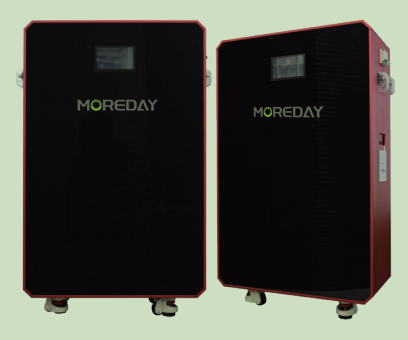

MDS-512314(E)

MDS-512314(E)

ParameterMDS-512314(A)MDS-512314(B)MDS-256314MDS-512200(A)MDS-512314(D)MDS-512200(B)MDS-512314(E)
Nominal Voltage51.2V51.2V25.6V51.2V51.2V51.2V51.2V
Nominal Capacity314Ah314Ah314Ah200Ah314Ah200Ah314Ah
Energy16.07kWh16.07kWh8.03kWh10.24kWh16.07kWh10.24kWh16.07kWh
Cycle Life8000 Times8000 Times8000 Times6000 Times8000 Times6000 Times8000 Times
Dimension (mm)485*245*823553*256*845485*245*823428*366*708730*610*257428*366*708530*145*825
CommunicationRS485/CANRS485/CANRS485/CANRS485/CANRS485/CANRS485/CANRS485/CAN
